Another new head unit

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #91

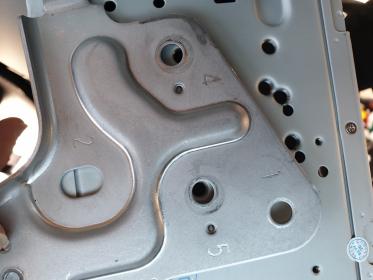

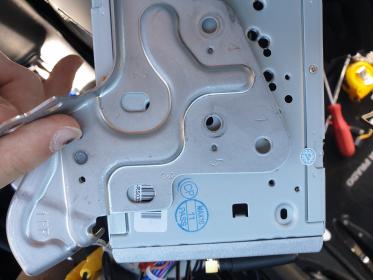

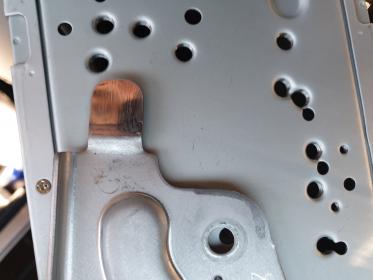

    Not so straight forward beyond that, sadly
    Attached Files

    Comment


    • #92
      Sorry to hear it didn’t work out quite as planned Very frustrating to read that everything works great except the brackets to hold it into the dash properly!

      It’s kind of the one thing that you really need to work properly.

      Comment


      • #93
        Just got my new Dasaita HA (MAX10) delivered. Installed it but got confused on where to put the GND wire at the back. Any ideas?

        Comment


        • #94
          As you have probably found out by now, and as strange as it seems, the Dasaita unit does not need the GND wire (the one with the eyelet) actually connected as there is an earth wire from the car in the loom adapters that come with the radio. As a precaution I connected it up to a lead that I made up that is earthed into an existing point behind the heater controls.

          Comment


          • #95
            Thanks mal, Yep I just found out about it but connect it anyway behind the A/C,heater controls (I didn't notice at first that there is a metal at the back of it that is connected to chassis.

            Comment


            • #96
              Got an issue with the new headunit.

              My Prado 2014 GXL gives a check engine warning light on my dashboard while I put it on reverse to check the camera.

              I ran an OBD2 scan and it reports that it has a P0705 issue.

              Also, I noticed that the PARK and REVERSE light on the shifter stick lit up everytime I put it back to PARK and the display on the unit is the camera. The only way to return to the main display of the unit is to put it on DRIVE then turn off the engine (at this stage the ACC is still ON), wait for the camera display to turn off, fully turn OFF, put back to PARK then turn ON again.

              Any advise what needs to be done on this one?

              I have contacted DASAITA already but they are not responding :-(

              Help.

              Comment


              • #97
                Did you look up the P0705 issue ? It sounds like the signal from the gearbox when selecting reverse is somehow being interfered with ?

                I used the adapter harness that came with the radio, there was no additional wiring to do, but I had several goes to get the reversing camera to display, as i recall that there were two video inputs for reverse. I also recall that there was a reversing lead in the adapter harness. I think that it was capped with an insulated sleeve. You don't need to do anything with that, but make sure the cap is still on it.

                With regards to Dasaita replying to your request for assistance, I found it was 1 to 2 days, (not including weekends), before they replied to the questions that I had.

                Comment


                • #98
                  Hi mal,
                  The P0705 is the issue with the CANBUS. The moment I unplug the CANBUS and cleared the code, it is back to normal.

                  Which selection in the SETTINGS do you have in your CANBUS?
                  Mine was pre-selected in '08 TOYOTA_CAMRY&RAV4(Simple)'. I also tried '19 TOYOTA(PARDO_2014)(Union)' but it still doesn't work.

                  The SW version of my CANBUS printed on the sticker is V3.28.017BYPS with TY-SS-05 20200815 (I think this is the manufacturing date??)

                  Yeah, they do reply but they are very slow.

                  Comment


                  • #99
                    Your settings for the canbus are the same as mine. I also found the Prado one did not work. I am not sure I understand what the nomenclature that Dasaita use, but suspect it is to do with Market.

                    My CANBUS adapter has the same version number V3.28.017BYPS with TY-SS-05 but with 20200708. Could be date of manufacture or could be a serial of some sort.

                    Mine also has a part number P/N:XY-2127-0011.

                    Maybe there is some setting that has been changed on yours that needs to be put back to default.

                    Cheers,
                    Mal

                    Comment


                    • Originally posted by alvingo View Post
                      Got an issue with the new headunit.

                      My Prado 2014 GXL gives a check engine warning light on my dashboard while I put it on reverse to check the camera.

                      I ran an OBD2 scan and it reports that it has a P0705 issue.

                      Also, I noticed that the PARK and REVERSE light on the shifter stick lit up everytime I put it back to PARK and the display on the unit is the camera. The only way to return to the main display of the unit is to put it on DRIVE then turn off the engine (at this stage the ACC is still ON), wait for the camera display to turn off, fully turn OFF, put back to PARK then turn ON again.

                      Any advise what needs to be done on this one?

                      I have contacted DASAITA already but they are not responding :-(

                      Help.
                      I had this issue on my CANBUS module. You need to cut the brown wire that connects between the large white plug and the black plug. It also connects to the CANBUS module
                      2018 150 Series Crystal Pearl Prado VX 2.8l. 2 inch King springs and Bilstein shocks, Airtek TJM snorkel.

                      Comment


                      • Hi All, Thanks for all the help. Cuda is right and at the same time I was just inform from Dasaita to unhook this cable (mine is labeled as "CHR" see attached image). After that, all good and back to normal. Now, I'm a happy owner of Dasaita MAX10 for Prado 2014 GXL.

                        Comment


                        • Can you post some photos of the finished product Alvingo?

                          Comment


                          • Here ya go Slopshua

                            Comment
