GXL Rear Seat Removal How To - With Photos

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • GXL Rear Seat Removal How To - With Photos

    This weekend marked the time in my life when the rear seats of my GXL had to go. After much googling I found the instruction manual everyone else uses:
    http://www.pradopoint.com/showthread...t-modification

    I thought I'd put up a bit of a step-by step with photos to make life easier for others in the future. This will take a few posts as there's many photos and I can only have 5 per post.


    Remove the tie down points. A 10mm socket gets the bolts out.

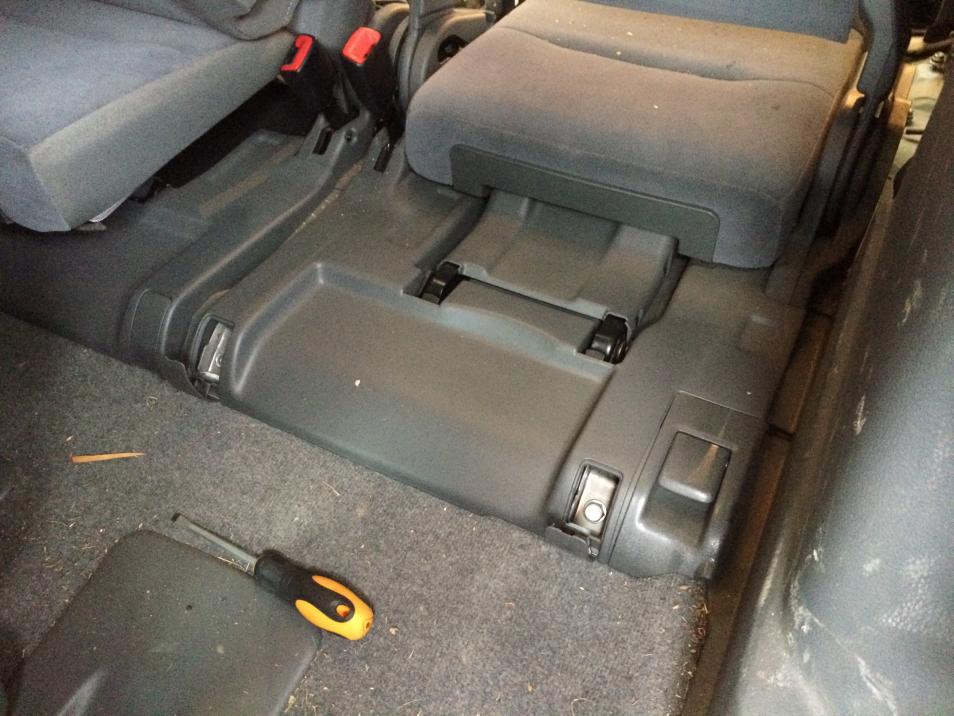

    Lift out the fold up floor. This is held in with plastic clips that require a little force to remove.
    Click image for larger version

Name:	IMG_0587.jpg
Views:	1
Size:	95.8 KB
ID:	661233

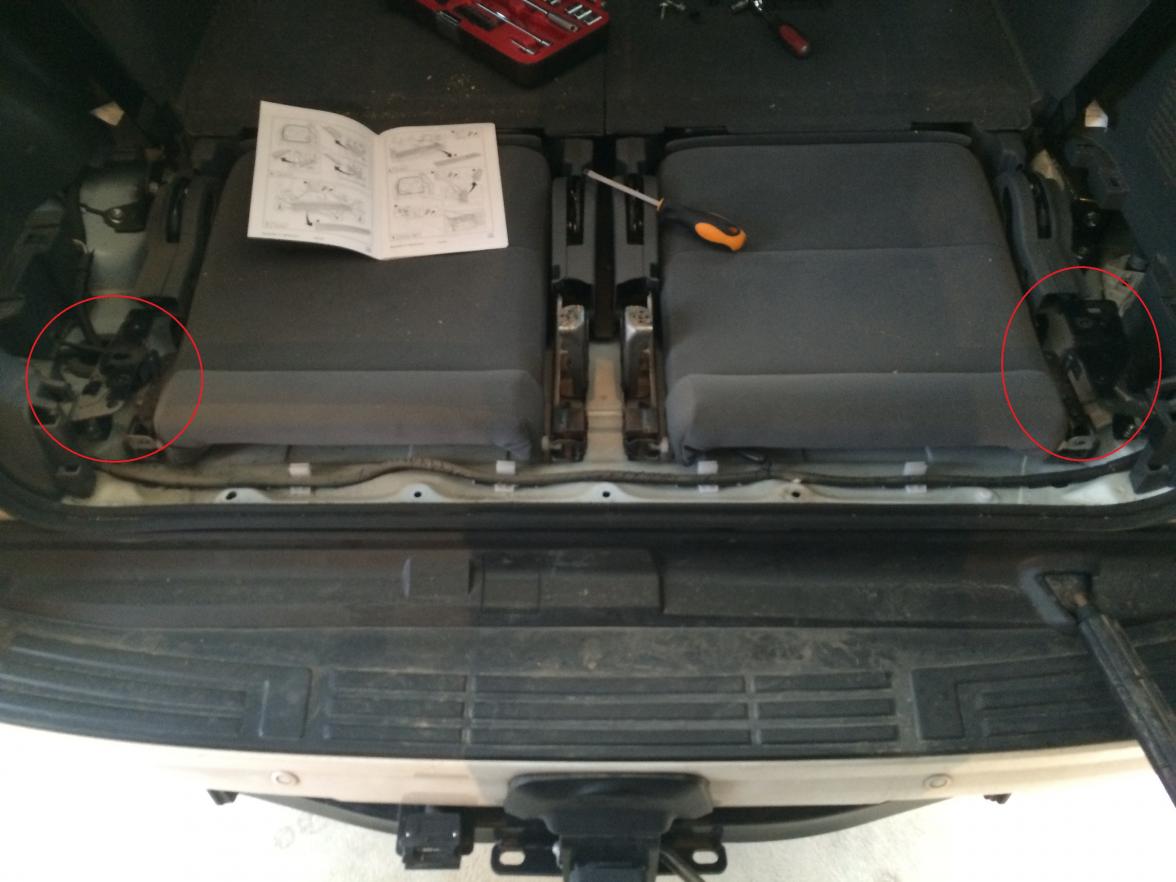

    With the fold up floor out, it is possible to lift out the left and right wing panels. These are also held in place with plastic clips, a gentle lever up gets them out pretty easily.

    Left:
    Click image for larger version

Name:	IMG_0590.jpg
Views:	1
Size:	97.0 KB
ID:	661234

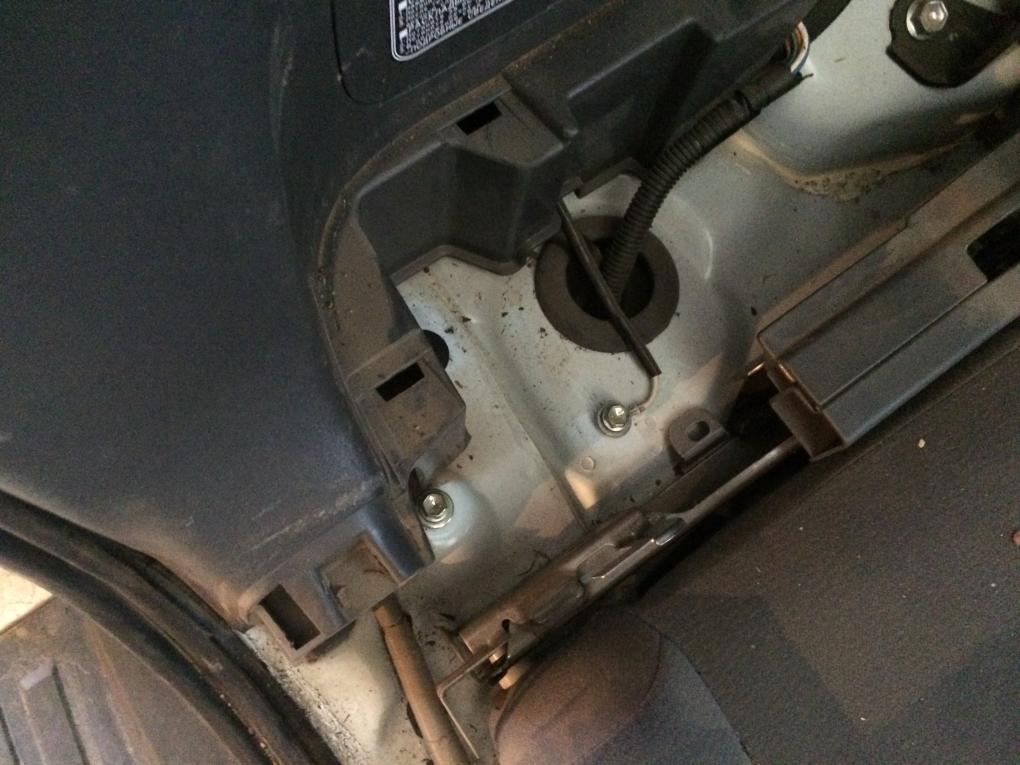

    Left Panel Removed:
    Click image for larger version

Name:	IMG_0588.jpg
Views:	1
Size:	96.5 KB
ID:	661235

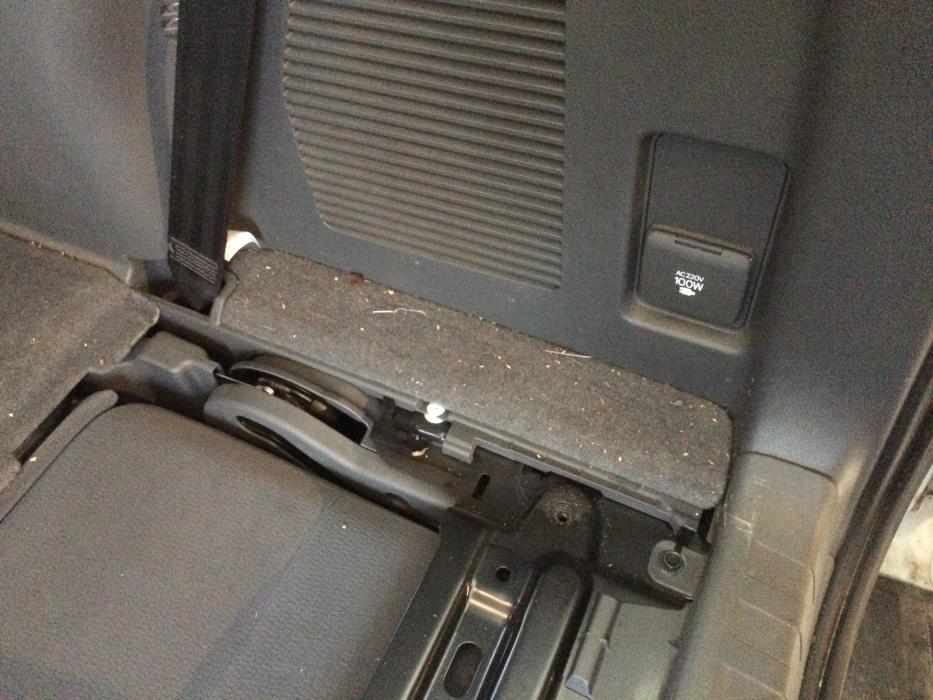

    Right:
    Click image for larger version

Name:	IMG_0589.jpg
Views:	1
Size:	96.6 KB
ID:	661236

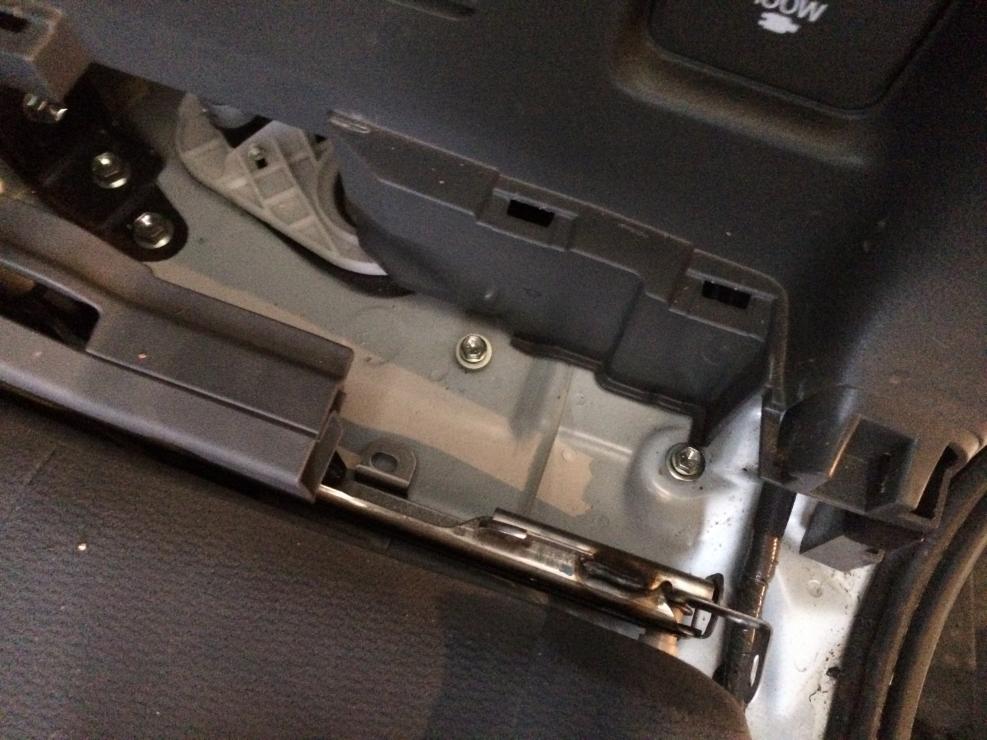

    Right Panel Removed:
    Click image for larger version

Name:	IMG_0592.jpg
Views:	1
Size:	97.4 KB
ID:	661237
    Last edited by Spilsy; 05-06-2015, 07:56 AM.
    [B]Spilsy[/B] - [I]Today is the tomorrow you were shitting yourself about yesterday[/I] - Billy Thorpe
    [B][URL="http://www.pradopoint.com/showthread.php?30269-Spilsy-s-2013-White-GXL-Build-Up&p=445756&viewfull=1#post445756"][COLOR="#800080"]2013 Turbo Diesel GXL[/COLOR][/URL][/B]

  • #2
    The next step was to remove the rear kick panel thing. This is held in place with 3 bolts. A 10mm socket is required again. I failed to get a photo for this as I was busy struggling with the clips holding the panel in place. It requires a bit of force to get out.

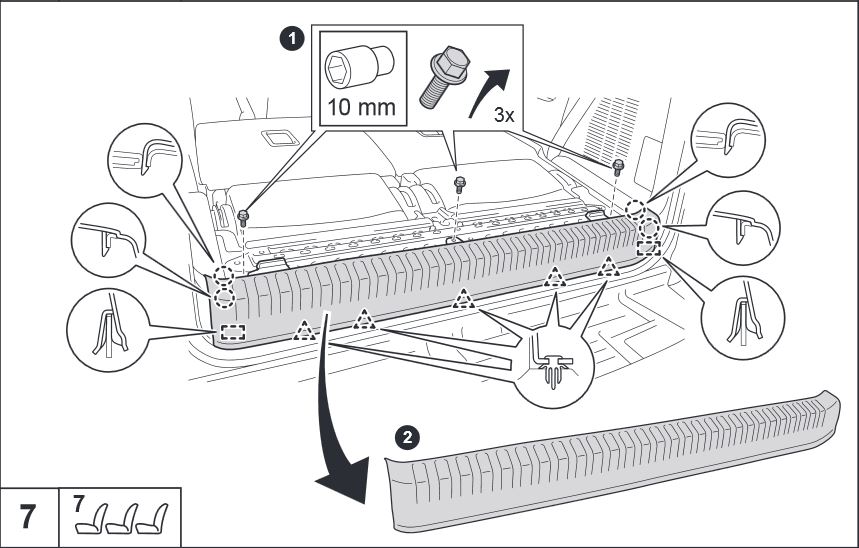

    This is from the manual and shows the extent of the task:
    Click image for larger version

Name:	Capture.JPG
Views:	1
Size:	88.2 KB
ID:	651789

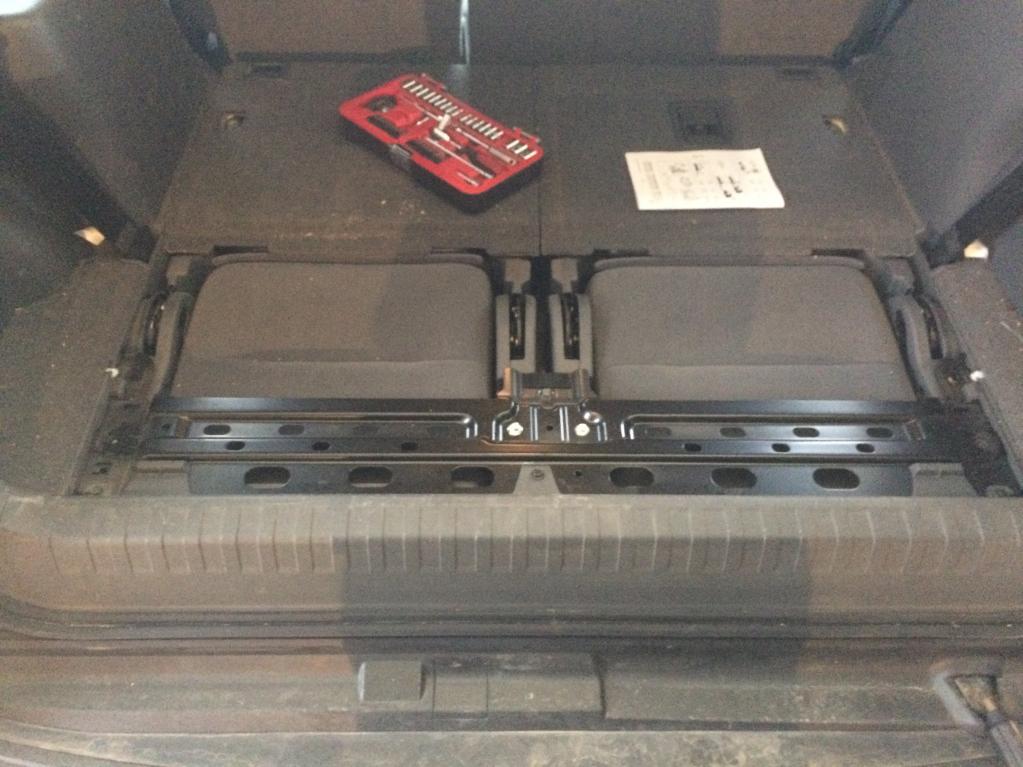

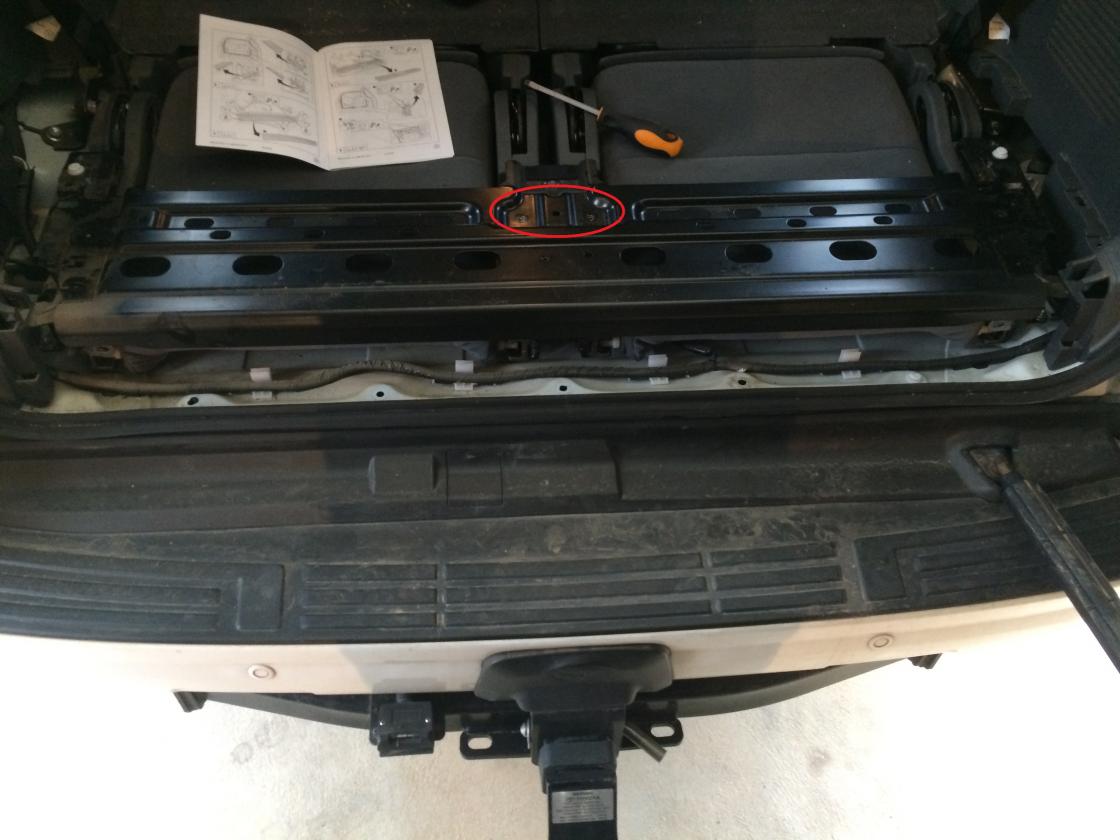

    Across the seats is a metal plate, held in with 2 more bolts, guess what, a 10mm socket gets these out too.
    Click image for larger version

Name:	IMG_0593.jpg
Views:	1
Size:	86.0 KB
ID:	651790

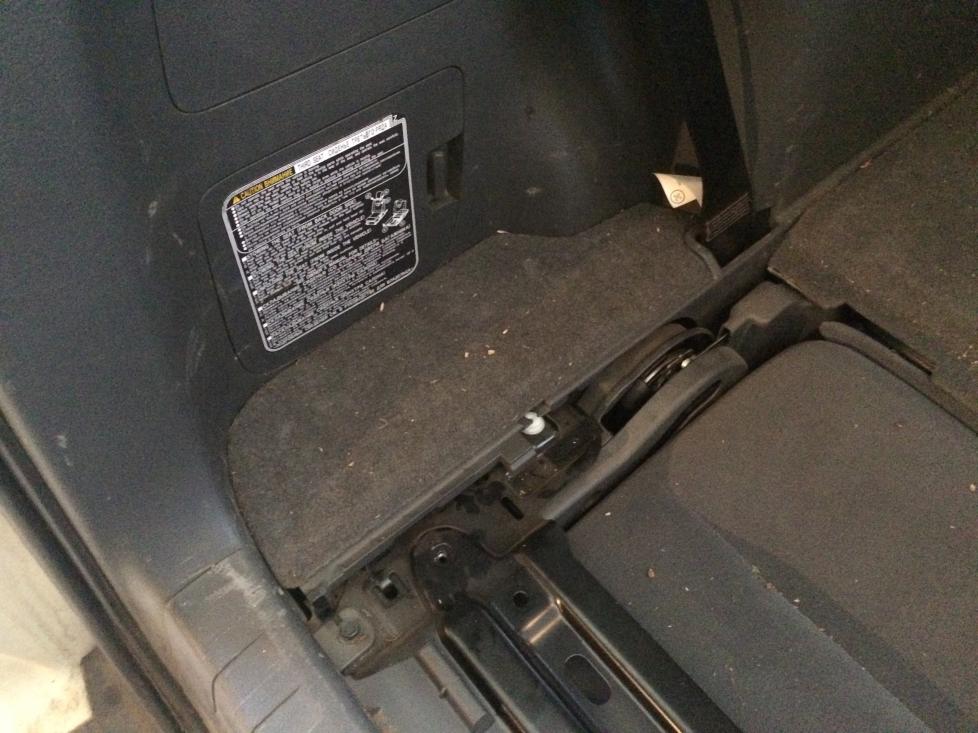

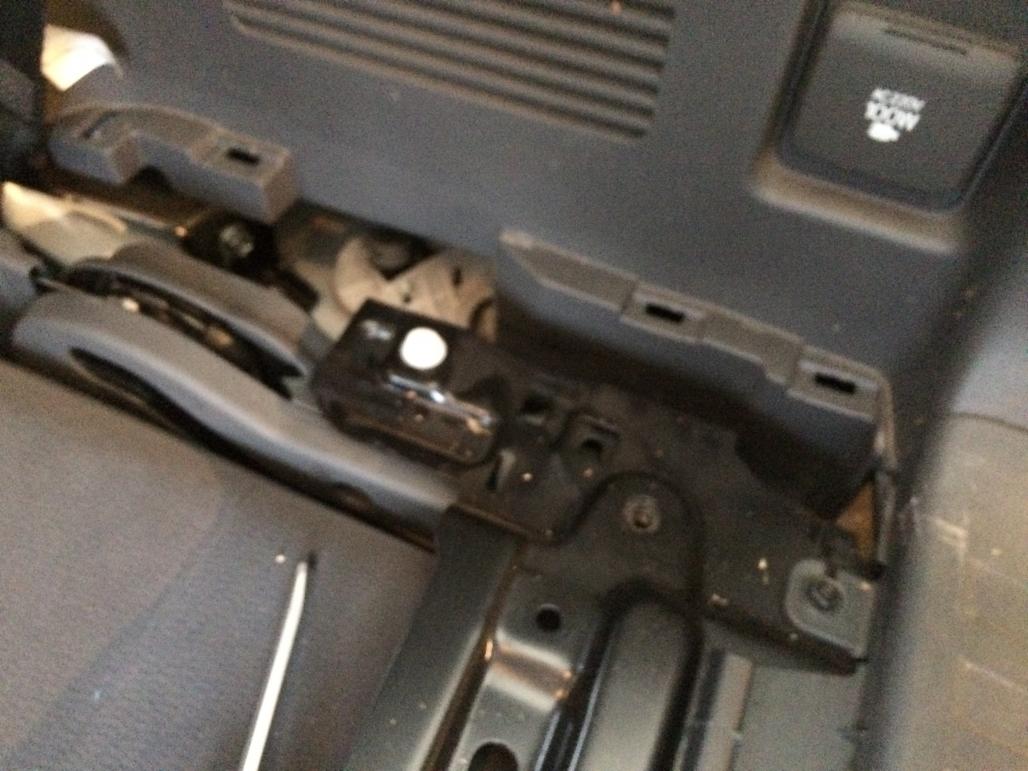

    On the left and right there are 2 more metal bracket things with another 2 bolts. I'm sure you've worked out which socket is needed.
    Click image for larger version

Name:	IMG_0594.jpg
Views:	1
Size:	85.9 KB
ID:	651791

    Left Bracket Removed:
    Click image for larger version

Name:	IMG_0595.jpg
Views:	1
Size:	94.9 KB
ID:	651792

    Right Bracket Removed:
    Click image for larger version

Name:	IMG_0596.jpg
Views:	1
Size:	95.7 KB
ID:	651793

    We are now on the home stretch - one more post should cover it!
    [B]Spilsy[/B] - [I]Today is the tomorrow you were shitting yourself about yesterday[/I] - Billy Thorpe
    [B][URL="http://www.pradopoint.com/showthread.php?30269-Spilsy-s-2013-White-GXL-Build-Up&p=445756&viewfull=1#post445756"][COLOR="#800080"]2013 Turbo Diesel GXL[/COLOR][/URL][/B]

    Comment


    • #3
      Now that all the brackets are out, its time to finally remove the seats.

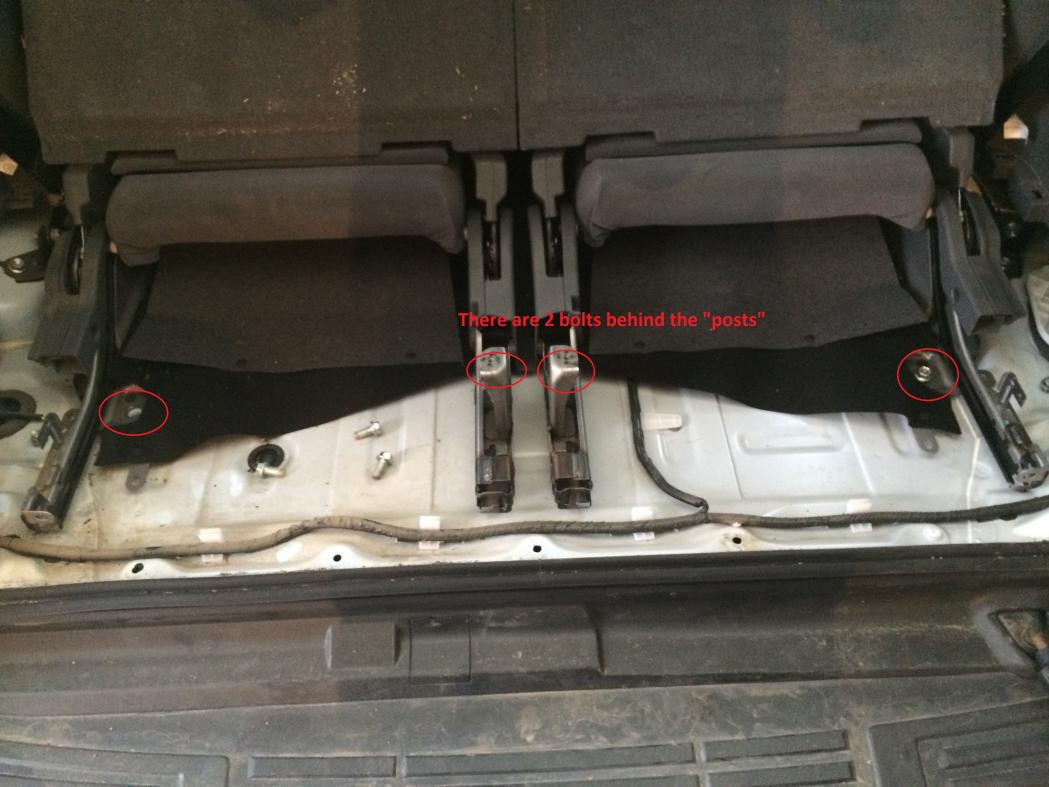

      To do this, you will need to lift up/out the seat bases (as you would do setting up the seats). This will reveal the bolts (a 14mm socket here, not a 10mm) holding the backs of the seats in place.
      Click image for larger version

Name:	IMG_0598.jpg
Views:	1
Size:	92.1 KB
ID:	651794

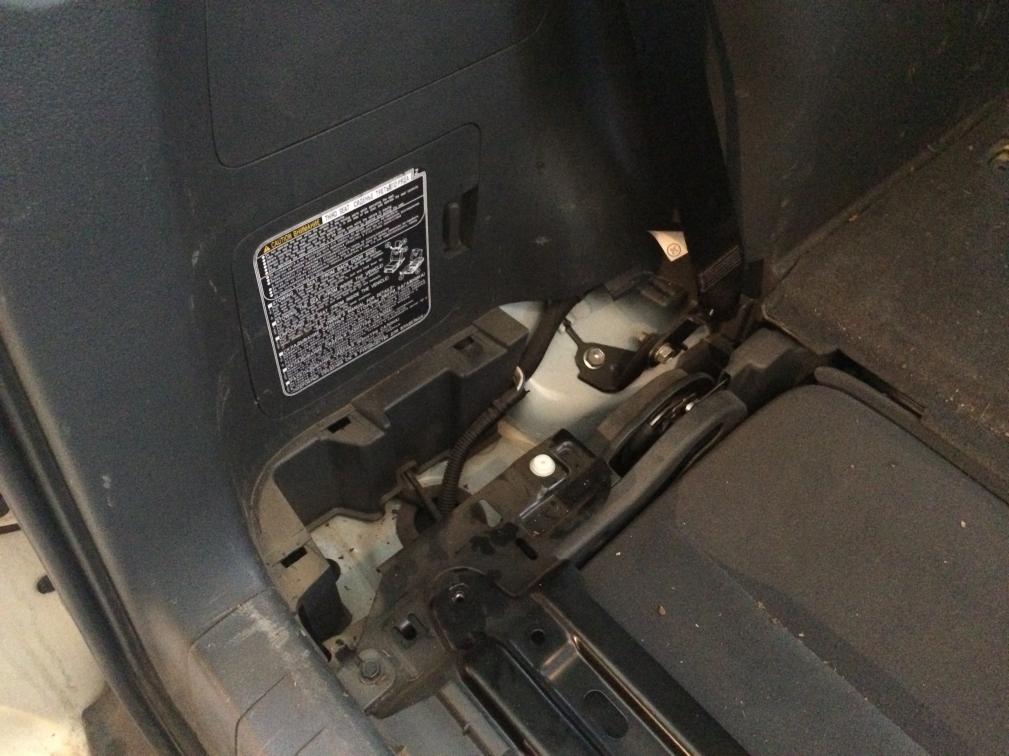

      Now, coming in from the rear doors, flick open the little tabs to reveal the final bolts for each of the seats.
      Click image for larger version

Name:	IMG_0599.jpg
Views:	1
Size:	95.9 KB
ID:	651795

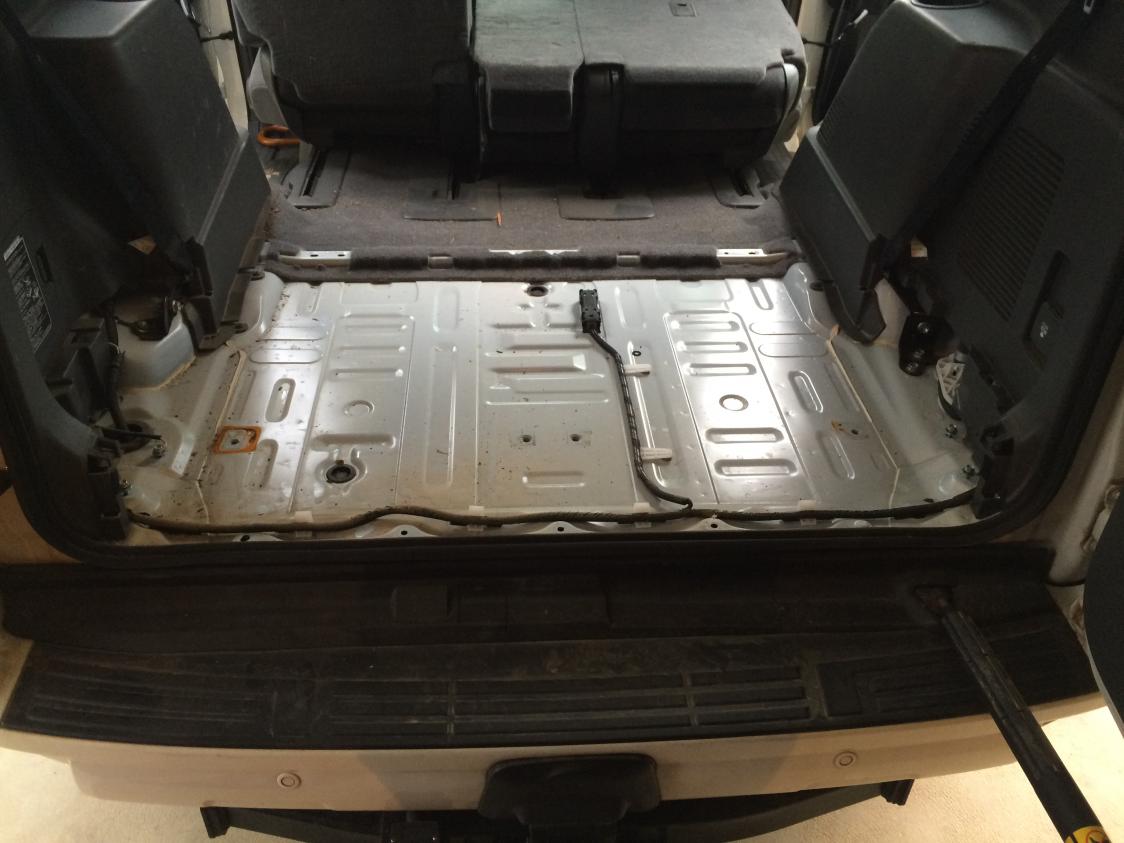

      Guess what, the seats are now ready to be removed. Remember that these weigh about 20kg each, so be careful with the lifting!
      Click image for larger version

Name:	IMG_0600.jpg
Views:	1
Size:	87.5 KB
ID:	651796

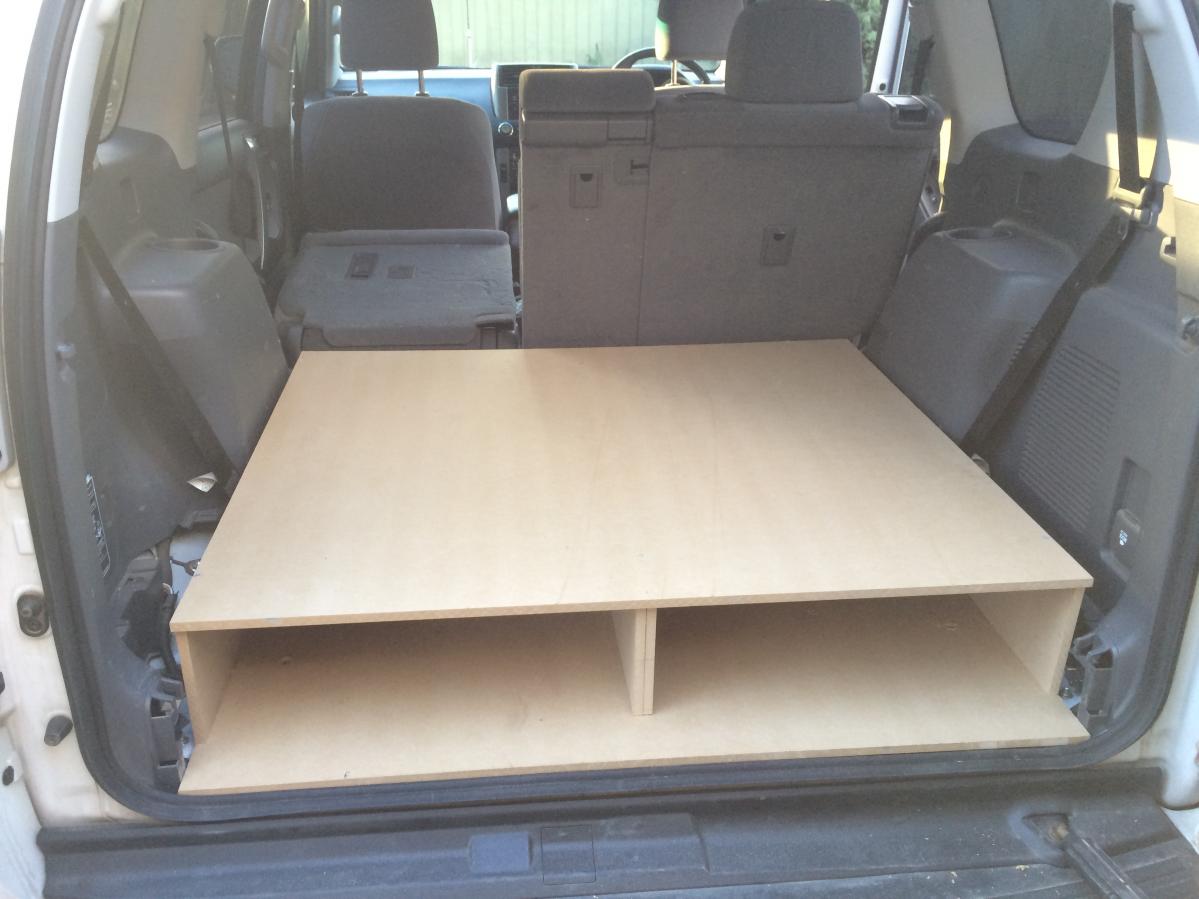

      With the seats removed, go nuts. Me, I'm putting in a new set of drawers...here's the starting body work:
      Click image for larger version

Name:	IMG_0601.jpg
Views:	2
Size:	86.8 KB
ID:	651797.

      I hope you can find this helpful. I know I struggled very slightly with the manual...
      Last edited by Spilsy; 01-06-2015, 07:38 AM.
      [B]Spilsy[/B] - [I]Today is the tomorrow you were shitting yourself about yesterday[/I] - Billy Thorpe
      [B][URL="http://www.pradopoint.com/showthread.php?30269-Spilsy-s-2013-White-GXL-Build-Up&p=445756&viewfull=1#post445756"][COLOR="#800080"]2013 Turbo Diesel GXL[/COLOR][/URL][/B]

      Comment


      • #4
        Thanks for posting Spilsy, very helpful for those of us who plan on doing drawers.
        2010 150 gxl D4D with ARB delux bar, towbar! Custom DIY drawers, rhino HD bars, 2" Dobinsons, platform rack, IPF lights and BFG AT2 and extras

        Comment


        • #5
          As a follow up - The cabin noise increases without the seats. There's no sound insulation in the rear floor pan. Even with my new drawers, the noise has increased. I will be installing some acoustic foam beneath the drawers when I can get myself to clark rubber.
          [B]Spilsy[/B] - [I]Today is the tomorrow you were shitting yourself about yesterday[/I] - Billy Thorpe
          [B][URL="http://www.pradopoint.com/showthread.php?30269-Spilsy-s-2013-White-GXL-Build-Up&p=445756&viewfull=1#post445756"][COLOR="#800080"]2013 Turbo Diesel GXL[/COLOR][/URL][/B]

          Comment


          • #6
            rear seats

            Great post , just easier with pics and when someone has done it, I like easy. Thanks.

            Comment


            • #7
              Planning on doing this over the coming weekend. What have people used under their drawers for sound deadening?

              Comment


              • #8
                Excellent post, thanks for sharing, might just be the kick I need to get mine out finally. TBH I thought this was a much bigger job.
                2012 D4D GXL Auto - Graphite with some TJM enhancement.
                [URL="http://www.pradopoint.com/showthread.php?27018-Alberto-s-150-Graphite-GXL-D4D"]My Build Up[/URL]

                [SIZE=4][/SIZE][COLOR="#800080"][/COLOR][I][/I][B]A Truly Happy person is one who can enjoy the scenery whilst on a detour!!![/B]

                Comment


                • #9
                  Thank you Spilsy. Removed mine on the weekend. Got some Drifta drawers ordered and your instructions are step one in the process.

                  Comment


                  • #10
                    Good work Spilsy, just what I was looking for

                    Comment


                    • #11
                      Look at doing the same thing. Was wondering what fixtures would be best to fit a fridge slide to the top of the drawers e.g. nut inserts, bolts. Im cautious of the slide ripping out of the wood?
                      2010 Prado 150 GXL Diesel, Cooper AT3, ARB compressor, Catch Can, Redarc BCDC 1225, Projecta DBC150, Optima YellowTop and RedTop D34, Pioneer Backbone Platform

                      Comment


                      • #12
                        Originally posted by mullerwh View Post
                        Look at doing the same thing. Was wondering what fixtures would be best to fit a fridge slide to the top of the drawers e.g. nut inserts, bolts. Im cautious of the slide ripping out of the wood?
                        Id be using a reasonable size T-nut.
                        2018 VX Prado

                        Comment


                        • #13
                          Thanks for this Spilsy, took mine out in no time over the weekend. So much more room!

                          Comment


                          • #14
                            Hi Spilsy, (and others),

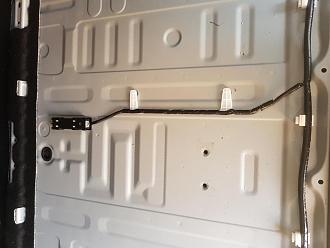

                            Do you know what that black device in the middle of the rear floor does? can it be shifted?

                            I took out my Prado rear seats yesterday (before I read your post) and discovered same (see below).

                            (Sorry, don't know how to rotate photo. It was OK before I copied it).

                            Bushtreka


                            Click image for larger version

Name:	20180707_143442.jpg
Views:	1
Size:	53.8 KB
ID:	738255

                            Prado 150D (2017) & Prado 90 V6 3.4L (1997)

                            Comment


                            • #15

                              It is the "No3 Indoor electrical key antenna assembly". It is one of many antennas that allow the ECU to identify where the key fob is.

                              Can it be moved? Yes.

                              Should it be moved? Probably not.

                              Cheers
                              Prone
                              2012 Prado 150 Altitude D4D Auto
