Grande 120 Suspension Upgrade

[winniliss Avid PP Poster! Find all posts View Profile Close winniliss]

Have a look at AJ120's rig build #38 http://www.pradopoint.com/showthread...l=1#post242503

I have done away with the coils completely and installed airbags from airbag man. Airbag man has a Prado with the air bag suspension but the height is manually adjusted. They also said they have never fitted auto height adjustment kit to a Prado, only sold them. I was so pissed off because they couldn't tell me where I could mount the valves.

[1coolbanana Avid PP Poster! Find all posts View Profile Close 1coolbanana]

I got the self leveling kit with manual over ride. Its just minimal space to mount the valve behind the fuel tank.

Ive never heard of them before! Learn something everyday

So how does that work?
Is it like a brake proportioning valve and does the kit come with a compressor?

Its not very good that they dont know the product they sell

[winniliss Avid PP Poster! Find all posts View Profile Close winniliss]

Ive never heard of them before! Learn something everyday

So how does that work?
Is it like a brake proportioning valve and does the kit come with a compressor?

Its not very good that they dont know the product they sell

Yes it uses the same principle as a brake proportioning valve. It has a linkage that goes to a valve body. From memory they have kits that include a compressor etc.

[1coolbanana Avid PP Poster! Find all posts View Profile Close 1coolbanana]

Yes it uses the same principle as a brake proportioning valve. It has a linkage that goes to a valve body. From memory they have kits that include a compressor etc.

Thats great, good luck with that and please let us know how it goes.
Id be very interested to see your setup.

Did you find some info about mounting the valves?

[winniliss Avid PP Poster! Find all posts View Profile Close winniliss]

Thats great, good luck with that and please let us know how it goes.
Id be very interested to see your setup.

Did you find some info about mounting the valves?

No and its hard working away and not being able to provide input. Once its all sorted I will do a write-up on my build thread highlighting the good and bad points in relation to this suspension upgrade.

I did speak to ultimate suspension and he laughed at me as to why I wanted to install airbags (last time I checked it was my vehicle). They also informed me that they use the existing height controls on the vehicle and have never installed a auto height control on a Prado. They just get the longer airbags from airbag man and install them on the Grande.

[1coolbanana Avid PP Poster! Find all posts View Profile Close 1coolbanana]

N
I did speak to ultimate suspension and he laughed at me as to why I wanted to install airbags (last time I checked it was my vehicle).

Why does the industry seem to be so full of arrogant tossers who think everyone else is an idiot?!?!?!?!
Sad reflection on the industry as a whole.

Suppose thats why so many of us struggle to try and do every thing ourselves huh?
Lucky there is Pradopoint to help

[Way2go Member Find all posts View Profile Close Way2go]

Airbag Man extended airbags going in with new shocks tomorrow.

Looking forward to the improvement.

Front is currently sitting at 810mm (880mm full droop), so will be getting the rear set to 840mm on the N setting (full doop is expected to be around 915mm or so). Nice lifted height all round, with the extra height still available on the Hi setting should I ever need it - and no worries about the airbags coming out!

Will keep you posted on the results.....

[Shan Senior Member Find all posts View Profile Close Shan]

Finally the suspension is done !! very happy with the result, what a difference specially under breaking...
Couldn't do anything to retain the bags but will get to it when I have a chance or replace with longer bags when I save up some money

Some pics..

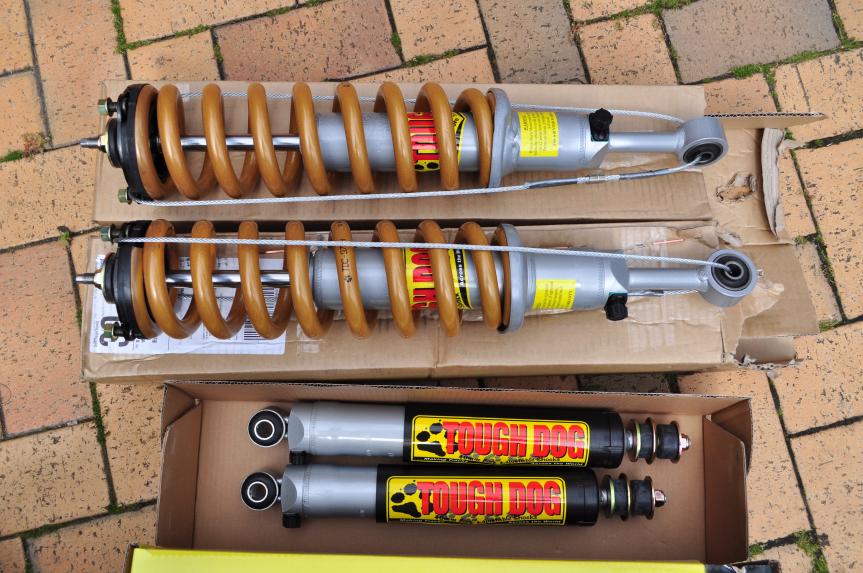

ToughDog goodies:

Front Before: After:
Rear Before: After:

Many Thanks to all the PPs, specially 1coolbanana, amts and craigm.
You guys rock!!!

[1coolbanana Avid PP Poster! Find all posts View Profile Close 1coolbanana]

WOO HOOO......................Sweeeeeeeeet

Now we need proper pics !

[Guest Close Guest]

So you didn't need the bolts and washers to lift the rear? They are with the bashplates which is out for delivery today.

[craigm Addicted PP Member Find all posts View Profile Close craigm]

Great result up the front Shan.. Well done! You'll need to space out the adjusters to increase your height in the rear though. Typically the rear should be 20-30mm higher than the front. Have another look at 1CB's post #122.

Regards
Craig

[Shan Senior Member Find all posts View Profile Close Shan]

WOO HOOO......................Sweeeeeeeeet

Now we need proper pics !

Can't wait for the weekend to come... going to Lerderderg state park and I'll have some pics ready

So you didn't need the bolts and washers to lift the rear? They are with the bashplates which is out for delivery today.

Nope I need them !! that's why the rear is sitting only 800mm or so. couldn't get any more on the original bolt. And the washers are just what I could find. Thanks Andrew !! received the bash plates today. Will get them on before the weekend as well.

Great result up the front Shan.. Well done! You'll need to space out the adjusters to increase your height in the rear though.
Craig

Thanks Craig!! was just waiting for amts freebies (bolts and washers)

[craigm Addicted PP Member Find all posts View Profile Close craigm]

SA, NSW, QLD, VIC ... Talk about interstate Network support!

[Guest Close Guest]

Nope I need them !! that's why the rear is sitting only 800mm or so. couldn't get any more on the original bolt. And the washers are just what I could find. Thanks Andrew !! received the bash plates today. Will get them on before the weekend as well.

Yeah, I realised after studying the pictures closer that the full lift was not achieved at the rear. Happy hunting for the bolts and washers. It's somewhere in the foam.

Edit: Hope you haven't forgotten the measurement you owe me .....

[Shan Senior Member Find all posts View Profile Close Shan]

Hope you haven't forgotten the measurement you owe me .....

Dual Batteries, Genesis HIDs and the Bash Plates are on the TO DO LIST this Wednesday... I'll get the measurements for you then....
They were siting in the garage for well over a month now.
