I bought my Jan 2017 Prado GX (MY2016) to tow our camper trailer on periodic trips when the demands of my business allow. My previous vehicle was a Kluger which was a little underrated to tow the camper. I had developed a CAN bus interface for the Kluger to monitor the status of the vehicle's doors: due to the situation of our house, the car port is exposed to the street. The CAN-bus door state monitor is connected via a wireless link to our living area, indicating the state of the car's doors (open/closed/locked/unlocked).
Since we tow a lot, it would be nice to know what gear is engaged, when the torque converter is locked and also monitor the transmission temperatures. Many members here would be aware that the Aisin-Warner AC60F automatic transmission is under full electronic control: gone is the separate transmission ECU of the KDJ. The GDJ150R's 1GD engine and 6-speed transmission are closely managed by a single unit. Since it's all electronic, it should be easy to extract what gear is currently engaged as well as TC lockup: easy, right? I wish! I had scoured the internet, including forums around the world. Many people want this real-time elusive data but I couldn't find information on it published anywhere.
As I mentioned earlier I had already designed and built my own CAN bus interface for my Toyotas. Not an easy task: there is a lot to be learned! Some time ago, I discovered that Mode/PID 2185 could reveal the torque converter lockup status in the Prado transmission but indication of the selected gear eluded me. Over several weeks I had logged reams and reams of data on my laptop but had no joy. A couple of weekends ago, I decided to re-process all of the data I had gathered, comparing the gearbox data against those for the vehicle speed. Finally a pattern emerged. One byte of PID 2185 consistently showed values 01 to 06, always showing the '1' when stopped or at low speeds and the number climbing as speed increased.
The following data is taken from a log that I took this afternoon. From a standing start at traffic lights, I entered Roe Highway in Malaga, in Perth's north. I planted my foot to get up to 100kmh as quickly as possible. You will see the 4th byte increase from 1 (first gear) to 6 (sixth) as speed increases to 100kmh. This few records of the log can be seen from the 14 minute mark in the graph below.
Notes:
What does this mean for owners of Scangauge, Ultragauge, Torque and other OBDII monitor owners? I have studied the Scangauge programming documents and I think the following should work, although I don't know how you would actually display the data.
Scangauge II
Gauge: Gear Selected
TXD: 07E02185
RXF: 046105850000
RXD: 2808
MTH: 000100010000
I don't fully understand the Ultragauge but the following should be a good start
Ultragauge MX
TDATA: 07E02185
TCTRL: ??
RCTRL: ??
RPOS: 1808
MTCH: 618500 (?)
X: 0001 /: 0001 +: 0000
Torque will probably use byte 'A'
I hope that other enthusiasts can confirm or enhance this config for specific devices.
Peter
Since we tow a lot, it would be nice to know what gear is engaged, when the torque converter is locked and also monitor the transmission temperatures. Many members here would be aware that the Aisin-Warner AC60F automatic transmission is under full electronic control: gone is the separate transmission ECU of the KDJ. The GDJ150R's 1GD engine and 6-speed transmission are closely managed by a single unit. Since it's all electronic, it should be easy to extract what gear is currently engaged as well as TC lockup: easy, right? I wish! I had scoured the internet, including forums around the world. Many people want this real-time elusive data but I couldn't find information on it published anywhere.
As I mentioned earlier I had already designed and built my own CAN bus interface for my Toyotas. Not an easy task: there is a lot to be learned! Some time ago, I discovered that Mode/PID 2185 could reveal the torque converter lockup status in the Prado transmission but indication of the selected gear eluded me. Over several weeks I had logged reams and reams of data on my laptop but had no joy. A couple of weekends ago, I decided to re-process all of the data I had gathered, comparing the gearbox data against those for the vehicle speed. Finally a pattern emerged. One byte of PID 2185 consistently showed values 01 to 06, always showing the '1' when stopped or at low speeds and the number climbing as speed increased.

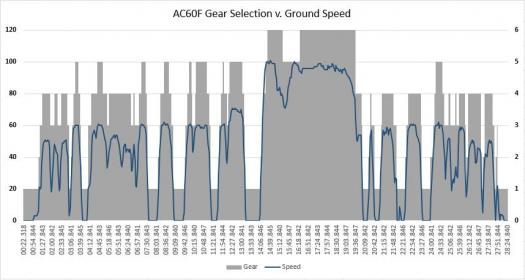

The following data is taken from a log that I took this afternoon. From a standing start at traffic lights, I entered Roe Highway in Malaga, in Perth's north. I planted my foot to get up to 100kmh as quickly as possible. You will see the 4th byte increase from 1 (first gear) to 6 (sixth) as speed increases to 100kmh. This few records of the log can be seen from the 14 minute mark in the graph below.
Code:
14:00.876 7E8 05 61 85 [COLOR=#2980b9]01[/COLOR] 00 10 00 00 14:03.873 7E8 05 61 85 [COLOR=#2980b9]01[/COLOR] 00 10 00 00 14:06.879 7E8 05 61 85 [COLOR=#2980b9]02[/COLOR] 00 10 00 00 14:09.879 7E8 05 61 85 [COLOR=#2980b9]02[/COLOR] 20 00 00 00 14:12.872 7E8 05 61 85 [COLOR=#2980b9]03[/COLOR] 20 10 00 00 14:15.881 7E8 05 61 85 [COLOR=#2980b9]04[/COLOR] 20 10 00 00 14:18.878 7E8 05 61 85 [COLOR=#2980b9]04[/COLOR] 20 10 00 00 14:21.879 7E8 05 61 85 [COLOR=#2980b9]04[/COLOR] 20 10 00 00 14:24.880 7E8 05 61 85 [COLOR=#2980b9]05[/COLOR] 20 10 00 00 14:27.881 7E8 05 61 85 [COLOR=#2980b9]05[/COLOR] 20 10 00 00 14:30.879 7E8 05 61 85 [COLOR=#2980b9]06[/COLOR] 20 00 00 00 14:33.879 7E8 05 61 85 [COLOR=#2980b9]06[/COLOR] 20 18 00 00 14:36.876 7E8 05 61 85 [COLOR=#2980b9]06[/COLOR] [COLOR=#e67e22]A0[/COLOR] 18 00 00 14:39.877 7E8 05 61 85 [COLOR=#2980b9]06[/COLOR] [COLOR=#e67e22]A0[/COLOR] 18 00 00
- Time stamps are not normally part of the OBDII data - these are added by my interface
- 7E8 is the response header address from the main ECU (I send the 2185 PID to address 7E0)
- The selected gear number is the 4th byte. Hexadecimal values 1 to 6 match gear numbers
- Also of interest is the 5th byte, where the most significant bit indicates torque converter lockup. So a value of 'A0' here shows the torque converter lock is active.
What does this mean for owners of Scangauge, Ultragauge, Torque and other OBDII monitor owners? I have studied the Scangauge programming documents and I think the following should work, although I don't know how you would actually display the data.
Scangauge II
Gauge: Gear Selected
TXD: 07E02185
RXF: 046105850000
RXD: 2808
MTH: 000100010000
I don't fully understand the Ultragauge but the following should be a good start
Ultragauge MX
TDATA: 07E02185
TCTRL: ??
RCTRL: ??
RPOS: 1808
MTCH: 618500 (?)
X: 0001 /: 0001 +: 0000
Torque will probably use byte 'A'
I hope that other enthusiasts can confirm or enhance this config for specific devices.
Peter
