Sam, great pics and information - really easy to complete. I followed your install and extended all the diff breathers. I secured the rear breather in the jack area. I extended the fuel breather along with the front transfer, transmission and diff breather. Good job mate.
-
-
Thanx Sam, great how to post. i did this on the weekend in preperation for Cape York next month.
Cheers
AlanLast edited by Strider; 07-07-2011, 03:07 PM.[color=#0000BF](The MK II) 2012 GXL Auto Diesel, White, ARB Bull Bar, Warn 9500lb XDC Winch, ARB Alloy Roof Rack, Aussieoutdoordirect Awning, Toyota Tow Bar, Safari Snorkel, ORS Rear Drawers and Fridge Slide, ARB Battery System with REDARC isolator, ERPS 10 Pad electronic Rust Cont, 275/65/17 BFG AT's, Jumbuck Sheep Skin Seat Covers, REDARC EBRH Brake Controller, OME 2" lift kit, Air Bag Man high pressure air bags, ARB CKMA12 on board compressor.[/color]Comment
-
I've noticed that most people who extend their diff breathers use one length of hose per breather which results in a handful of hose coming up into the engine bay. If the breathers are there to deal with the expansion of air, surely the volume of air passing through the hose doesn't necessitate a dedicated hose for each breather. If this is the case, would there be any issue with just running one hose to connect them all in series from the back diff to the front and up through to the engine bay?
MikeMy build [url]http://www.pradopoint.com/showthread.php?25816-Mikes-150VX-Yes-it-s-another-silver-Prado[/url]Comment
-
mickmac_42,
Take my vehicle for instance, auto trans has ATF in it. Transfer box has gear box oil,
diff has diff oil. Probably not a good idea to connect them together as cross contamination could occur,
this is the reason the manufacture has kept them seperate.
Cheers
LeighwHKB Electronics, manufacturer of the Alternator Voltage Booster, Silver 2008 D4D,Lifted,Underbody protection, Alternator Voltage Booster, Tiger Z winch, Lightforce DL, Air Horns, Tanami Drawers, Drop down fridge slide, Outback cargo barriers, Rotronics dual Battery system, Polaris GPS, HF/UHF/VHF, Radio speaker combiner, Long ranger water tank, Diff breathers, Inverter, Snorkel and othersComment
-
Hi Fellas. Regarding the idea that the diff's retain positive pressure. If I had a hisssss when I removed the filler plug I would expect to find my breather blocked. I have seen industrial gearboxes on a test bench after reconditioning though and they are test run-in hot for hours at 5 - 7 PSI positive pressure to prove the seals are going to hold. My KZJ95R had water in the rear diff after 40,000 km of highway running and it had never been near a drain even - I put it down to road spray during torrential rain and fitted breathers anyway. The front diff was fine which I put down to the bash plate stopping the road spray. Cheers.2005 100 Series Landcruiser. 4.2 T/D 5 speed auto. LTD c/w AHC/Leather etc.Comment
-
Hi All, I've extended the rear diff breather up to the dual wheel carrier, it looks ok running the line with the reverse camera wiring then up behind the spare tyre, its quite high up and should be good for Cape York in mid May if they open the roads.
Blue Storm 150 GXL 4D4 PRADO and 2014 Cub Brumby Camper
My rig build [url]http://www.pradopoint.com/showthread.php?25698-Derek11-s-2012-Blue-Storm-150-GXL-build-up[/url]Comment
-

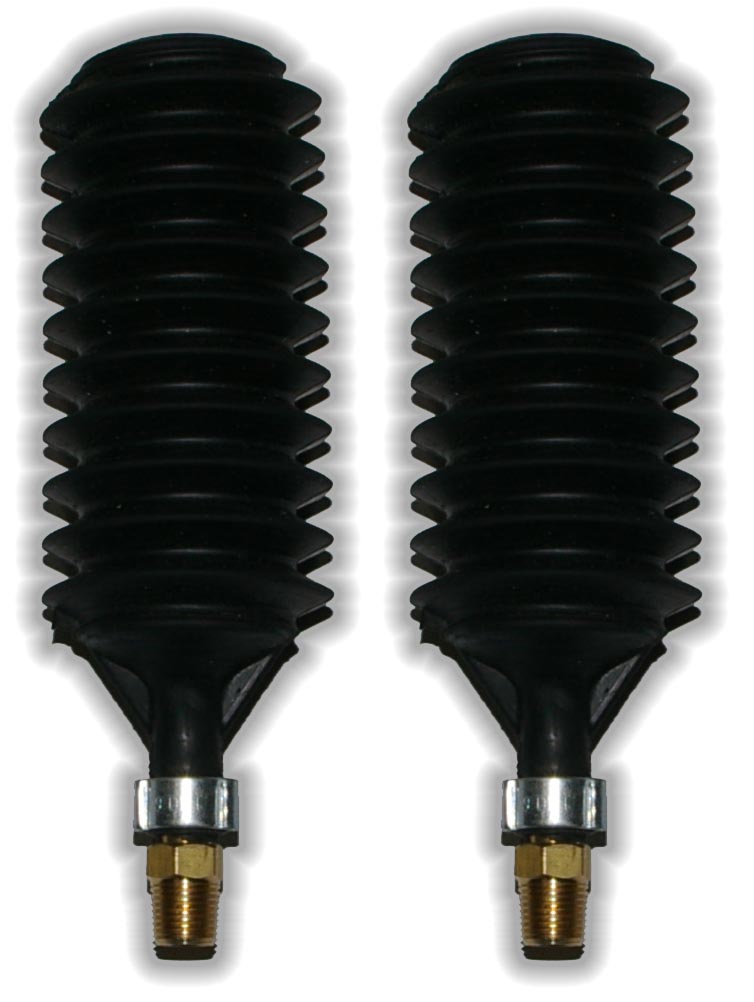

anyone have these installed?http://www.locktup4x4.com.au/diff-br...-kit-1155.html
website states "Approx. length of breathers (including fitting) is 12cm"
Appears the thought is to use the volume of space in the bellows. Sounds reasonable to me and you don't have long lengths of hose running through the vehicle. My concern would be more so around debris in the water placing strain on the bellows/fittings._______________________________________
[SIZE=1][B]2011 Silver 150 DVD[/B] [B]GXL[/B][/SIZE][SIZE=1], Safari Snorkel, Sand Grabba mats, Michelle Sacs seat organizer, ARB Bull Bar, Lightforce 170 HID, Bonnet and Headlight protectors, Dual Batteries, Engel Fridge, Kaymar rear spacer, Cooper STTs [B]x 6[/B], Rhino Pioneer tray in black, MaxTrax, Black Widow Drawers with top shelf, divider & cargo barrier, ARB Sports Nitrochargers and springs, ICOM IC 440N CB
[/SIZE]Comment
-
I did my 2012 Prado's breathers today and it has changed slightly from my 2010 model. The third breather in the image now has a white factory breather cap on it and it is for the transmition. The other two go back to the transfer case. I now know why my auto filled up with water on my last vehicle. Now I have four hoses running up to the fire wall, Rear Diff, 2 x transfer case and Transmition. Sorry I didn't get a photo before I pulled it apart.
Regards
Alan[color=#0000BF](The MK II) 2012 GXL Auto Diesel, White, ARB Bull Bar, Warn 9500lb XDC Winch, ARB Alloy Roof Rack, Aussieoutdoordirect Awning, Toyota Tow Bar, Safari Snorkel, ORS Rear Drawers and Fridge Slide, ARB Battery System with REDARC isolator, ERPS 10 Pad electronic Rust Cont, 275/65/17 BFG AT's, Jumbuck Sheep Skin Seat Covers, REDARC EBRH Brake Controller, OME 2" lift kit, Air Bag Man high pressure air bags, ARB CKMA12 on board compressor.[/color]Comment
-
Agreed with Derby. The hiss sound is when the breather is block as you pull the factory breather off. Mine did the same and when you check the factory supplies breather it was completely block. That is not good for the diff.2010 Silver Prado 150 Series : Blackvue Camera: GME UHF Radio: TG150: ARB Deluxe winch bar: ARB Bash plate: T-Max Winch: Narva HID lights:Comment
-
the 120 Series had a y-piece between the transfer case and coupling case to one breather and a breather from the transmission. The 150 series has done away with the y-piece and now has 3 breathers coming from these same locations.
When I did Dave's BRC breather install - I used a pneumatic line y-piece connector just under the BRC filter block to rejoin the transfer case and coupling case breathers (as the BRC only allowed for 4 breathers).
All up both the 120 and 150 series prados have 5 breathers (not including the fuel tank breather) which should be relocated.2014 D4D 150 GXL Automatic - CHARCOALComment
-
This is what Matty was on about:
Graphite 150 series [B]"Altitude"[/B] - MT ATZ 4-rib ATZ, ARB Delux winch bar, Magnum 9000lb winch, ARB CKMA12 air compressor(with tray) dual battery, LF 240 HID, Waeco 80L fridge, OL 45 lt fridge, ARB Roof Rack and space case, GME 3450 UHF, OME Shocks and Springs, ARB awning, BRC quad diff breather, TG150 gaurd, AMTS bash plates and a wishlist!!Comment
-
7 actually, if you include the rear pump for the airbags on a Grande and a set up for a winch.All up both the 120 and 150 series prados have 5 breathers (not including the fuel tank breather) which should be relocated.[B][COLOR=blue]Bitumen: A blatant waste of taxpayers money![/COLOR][/B]
[URL="http://www.pradopoint.com/viewtopic.php?f=38&t=12197&start=0&st=0&sk=t&sd=d"]My rig buildup[/URL] [URL="http://www.pradopoint.com/album.php?albumid=141"]Mundaring Power Lines Jan 01[/URL] [URL="http://www.youtube.com/watch?v=KuQmi3Tgoe0&feature=feedu=d"]You Tube Video Morgan Quarry[/URL]Comment
-
Ok smart arse! 2x diff, 1x trans, 2x transfer case, 1x fuel tank, 1x air bags (grande), 1x winch...Originally posted by MidLifeCrisis View Post2014 D4D 150 GXL Automatic - CHARCOALComment
-
Come on MLC, show us your BLING!Graphite 150 series [B]"Altitude"[/B] - MT ATZ 4-rib ATZ, ARB Delux winch bar, Magnum 9000lb winch, ARB CKMA12 air compressor(with tray) dual battery, LF 240 HID, Waeco 80L fridge, OL 45 lt fridge, ARB Roof Rack and space case, GME 3450 UHF, OME Shocks and Springs, ARB awning, BRC quad diff breather, TG150 gaurd, AMTS bash plates and a wishlist!!Comment
-
Has any one really done one for the air bags ?? :-S My knowledge is very much lacking hahaOriginally posted by Matty & Loz View Post
Thanks Troy2005 Toyota Prado Grande 3.0 TD - ARB Deluxe winch bar, Avenger 9500lb winch - nylon rope, Safari Snorkel, DP Diesel Chip, Lightforce HID 240's 50w, Oricom UHF, Bushranger Mud Tamer mats, Toyota Genuine Tow Bar, Toyota Genuine bonnet protector and headlight protectors, ARB Roof top tent and awning, ARB dual battery system with Red ARC and Optima deep cycle battery, Max Trax, ARB Compressor and Rear Air Locker, Waeco 50L fridge/freezer.Comment
Matty80
