Scangauge II (SG2) Injector Feedback Values (1KD-FTV) - FOUND

[spencerm106 Junior Member Find all posts View Profile Close spencerm106]

Hi all, thought I would start this on a new post, but I believe the feedback values (2012 Kakadu) on SG2 are as follows:

TXD:07E021AD
RXF: 032280000000
RXD: 4808
MTH: 00C8 0080 FF9C
NAM: VI1 (injector feedback value #1)

TXD:07E021AD
RXF: 032380000000
RXD: 1808/2008/2808
MTH: 00C8 0080 FF9C
NAM: VI2/VI3/VI4(injector feedback value #2, #3 and #4)

We do have the most of the PIDs cracked for the mode 21 PID AD block, but can't be bothered typing it all out, however, you should be able to figure it out by reading through the attached link.

I haven't tried or tested yet, but the equation for Torque pro should be something like ((R*20)/128)-10) where R = injector 1, S = injector 2, T = injector 3 and U = injector 4.

Cheers
Spence

[spencerm106 Junior Member Find all posts View Profile Close spencerm106]

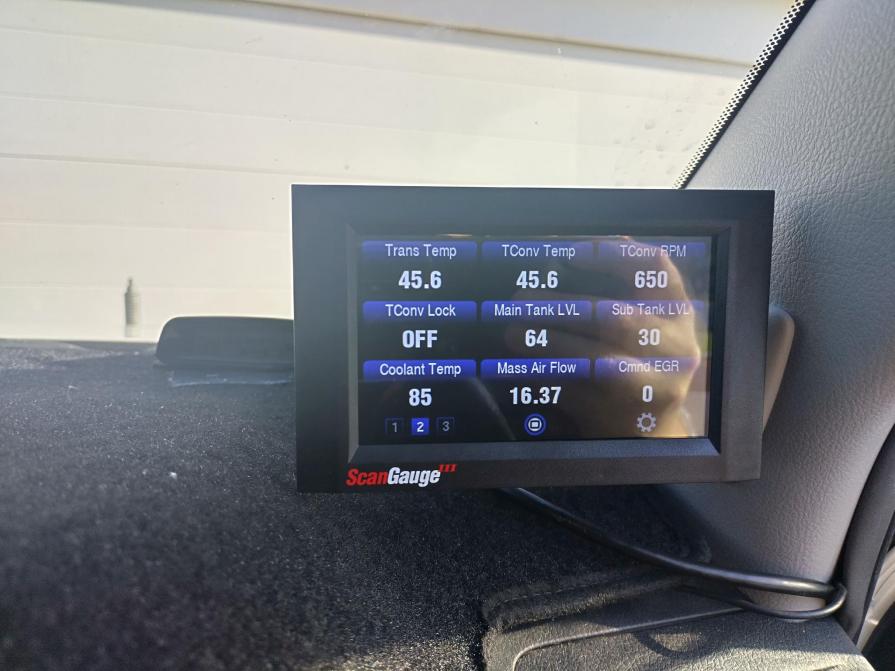

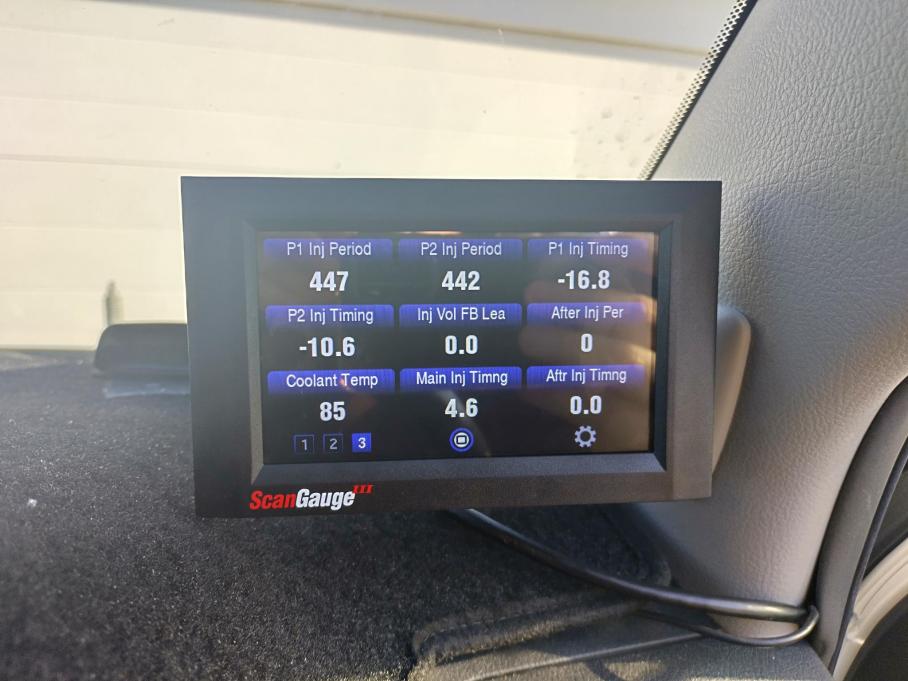

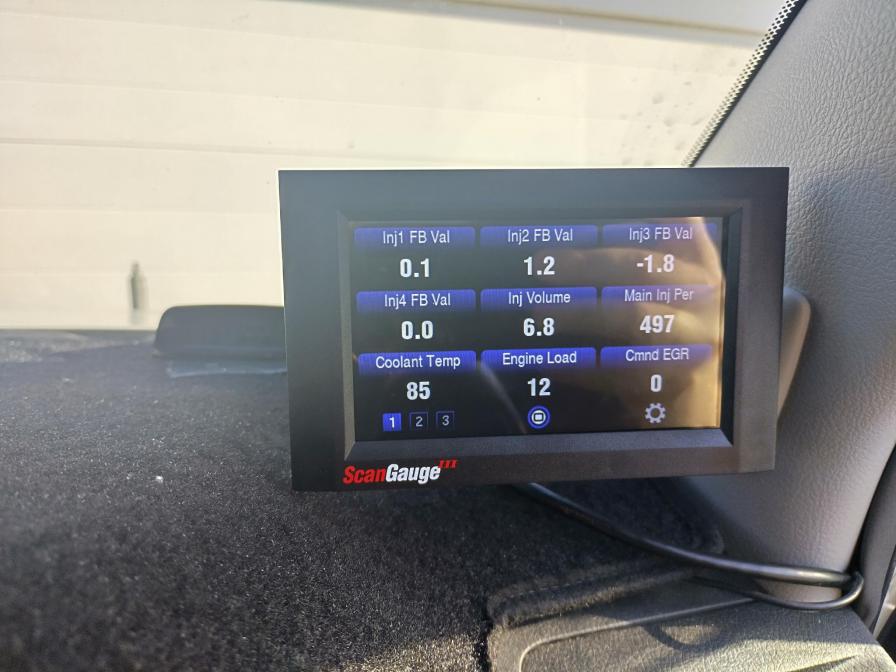

Please see the PIDs for Toyota 21AD below (for an April built 2012 kdj150). Also, I do approve the new Scangauge 3, it is fantastic are far easier to use (see pics with information added below).

Pilot 1 Injection Period
TXD:	07E021AD
RXF:	056106AD0000
RXD:	3010
MTH:	000100010000

Pilot 2 Injection Period
TXD:	07E021AD
RXF:	056106AD0000
RXD:	4010
MTH:	000100010000

Main Injection Period
TXD:	07E021AD
RXF:	032100000000
RXD:	1810
MTH:	000100010000

After Injection Period
TXD:	07E021AD
RXF:	032100000000
RXD:	2810
MTH:	000100010000

Pilot 1 Injection Timing
TXD:	07E021AD
RXF:	032180000000
RXD:	3810
MTH:	000100010000

Note: The Pilot 2 injection timing was split across two frames and I don't believe SG can handle this, so I got creative and just added the leading "FF" bits as per below. I have tested and appears to work

Pilot 2 Injection Timing
TXD:	07E021AD
RXF:	032280000000
RXD:	1808
MTH:	00010001FF00

Main Injection Timing
TXD:	07E021AD
RXF:	032280000000
RXD:	2010
MTH:	00010001FC7C

After Injection Timing
TXD:	07E021AD
RXF:	032280000000
RXD:	3010
MTH:	000100010000

Injector Vol Feedback Learning
TXD:	07E021AD
RXF:	032280000000
RXD:	4008
MTH:	00C8 0100 FF9C

Injection Feedback Val Cyl#1
TXD:	07E021AD
RXF:	032280000000
RXD:	4808
MTH:	00C80080FF9C

Injection Feedback Val Cyl#2
TXD:	07E021AD
RXF:	032380000000
RXD:	1808
MTH:	00C80080FF9C

Injection Feedback Val Cyl#3
TXD:	07E021AD
RXF:	032380000000
RXD:	2008
MTH:	00C80080FF9C

Injection Feedback Val Cyl#4
TXD:	07E021AD
RXF:	032380000000
RXD:	2808
MTH:	00C80080FF9C

Injection Volume
TXD:	07E021AD
RXF:	032380000000
RXD:	3010
MTH:	006402000000

[silver150-3.0 Lurker Find all posts View Profile Close silver150-3.0]

Just tried the PID's you gave for Torque Pro in my Carscanner app.

((R*20)/128)-10) where R = injector 1, S = injector 2, T = injector 3 and U = injector 4.

Seemed to work well. Thankyou

[spencerm106 Junior Member Find all posts View Profile Close spencerm106]

Just tried the PID's you gave for Torque Pro in my Carscanner app.

((R*20)/128)-10) where R = injector 1, S = injector 2, T = injector 3 and U = injector 4.

Seemed to work well. Thankyou

Thanks, are you able to confirm with Techstream if you have it?

[m1ci Lurker Find all posts View Profile Close m1ci]

I checked the codes and they work on Land Cruiser Prado 150 3.0 1KD-FTV (with DPF) from 2011. European version.
BTW, anyone has the DPF% (PM accumulation level) for 1KD-FTV (with DPF)?

Thank you very much!
