    Good mate,

    I have check your post and I can see that you did an excellent job. I have a GX 2010 model and was wondering if you would be happy to put one together for me and I'll give pay you for the parts and your time.
    Regards,
    Krys

    Comment


    • #77
      Originally posted by XTR3ME View Post
      Good mate,

      I have check your post and I can see that you did an excellent job. I have a GX 2010 model and was wondering if you would be happy to put one together for me and I'll give pay you for the parts and your time.
      Regards,
      Krys
      Hey Krys,

      I'm assuming you mean mine? It probably wouldn't be worth it for you. I did mine with about $700 worth of parts but it took about 6 weekends to get it all done. Definitely a labour of love and worth it for my own rig but probably not so much if I had to charge someone else for the time it takes to make them. Better off getting a professional like drifta to put a package together that fits your needs just right unless you want to have a crack at making your own.

      Tiny

      Comment


      • #78
        Originally posted by talk2tiny View Post
        I went your way for ages too and built my drawers to sit on top. It's handy but FYI, it's actually very little work to take the seats out and put them back in again. After I built mine, I did a longer trip to the cape and decided to remove the seats to add a bit of extra space and reduce the excess weight. It's seriously a 10 minute job so I wouldn't worry too much about taking them out to build your false floor.

        If you don't though, you can just undo the bolts holding the cargo tie downs in and get some longer replacements to bolt your false floor in the same holes. No idea what the crash rating would be but they seem pretty sturdy to me.
        Cheers Tiny! I might take them out to see how simple it is for demonstration purposes to the wife :-) thanks for the feedback!

        Comment


        • #79
          I posted some pics of my homemade setup a while ago, but today I took them all out, gave the rear end a good vacuum and made a bit of an improvement - previously I did't have the forward end of my false floor properly secured to the floor, it was only screwed in via the rearmost seat bolt holes. Anyway, I installed some M8 rivnuts which have done the job BEAUTIFULLY! And, I thought I'd take some pics whilst it was all in pieces...

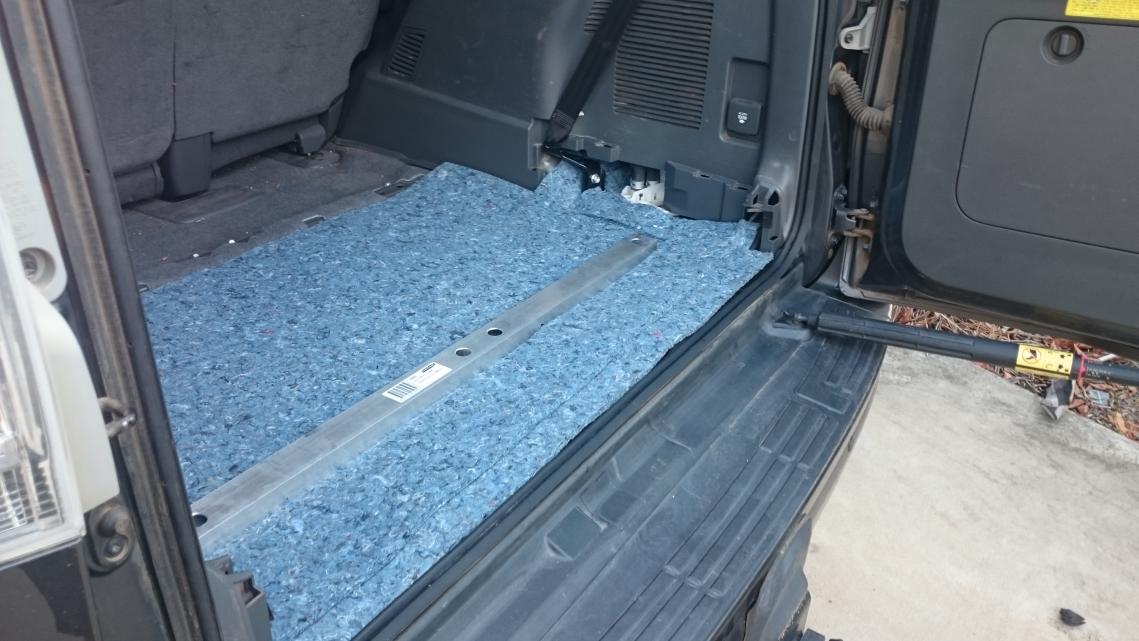

          The front bolts that secure the front of the rear row of seats (which I've obviously removed) are angled forward at about 30 degrees - this makes it difficult to use them to secure the false floor - hence the M8 rivnuts as shown below:




          To locate exactly where I had to drill the holes in the false floor, I placed "dowel locating spikes" in the top of the M8 rivnuts, placed the false floor carefully in position, and gave it a good whack in the approximate place with a heavy rubber mallet! Worked a treat!



          I've had these for a while - they had to be custom manufactured in England - M10 counter-sunk long bolts in 1.25 thread - cost about $40 inc delivery and took ages! But, I didn't want to drill any other holes and these are super strong.



          False floor in position and finally properly secured - front and back!



          Drawer units in place and secured to false floor - counter sunk M8 bolts.



          Drawers at full extension.



          Top in place and fridge slide back on and good to go!

          Prado 150 D4D AUTO GXL with ARB Deluxe Winchbar, Brains' TG150 Transfer Case Actuator Guard, Bilstein/Ridepro 50mm Lift, Safari Snorkel, D697 265/65/17 LTs, Dual Battery Setup with REDARC Controller, REDARC Tow Pro, Toyota Tow Bar, Maxtrax - towing a Camprite TL8s fitted with GXL wheels and D697s.

          Comment


          • #80
            150 rear drawers

            Just enquiring if you have the dimensions you used for the fit out. Looks really good and I'd like to have a go myself.

            Comment


            • #81

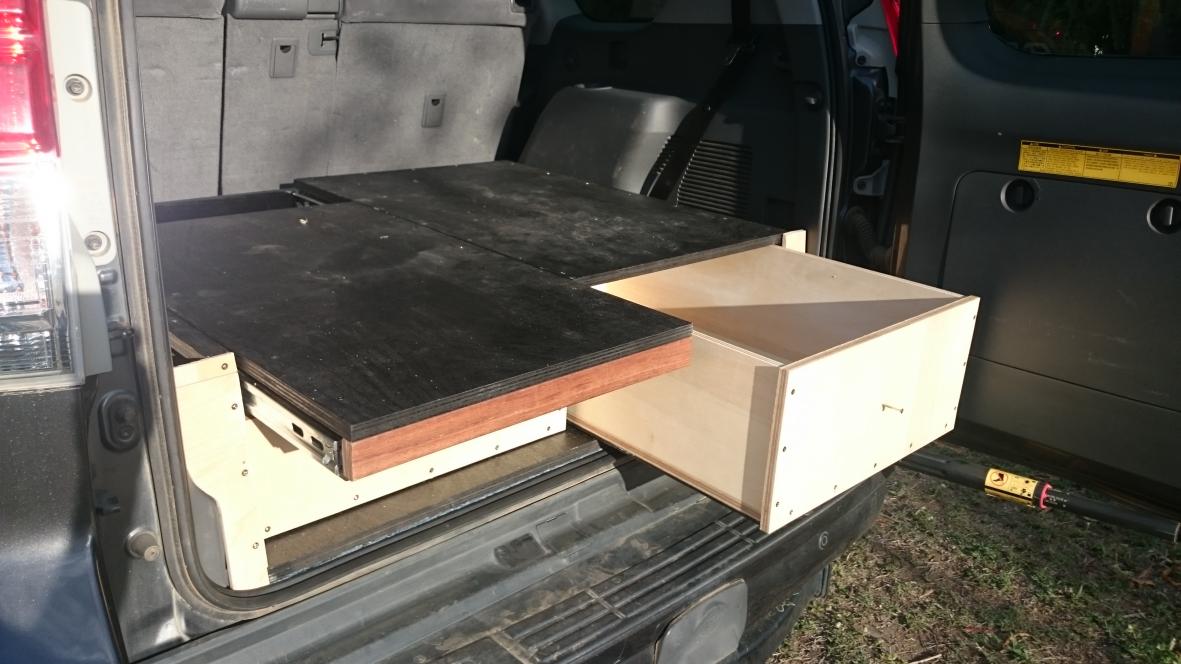

              Finally got my attempt finished this weekend after waiting ages for the handles to arrive.

              Will install fridge slide at some point.

              All up cost was around the 300-350 range.

              Have the google sketchup file / model if anyone wants it.

              Comment


              • #82
                Originally posted by Craggles123 View Post
                Finally got my attempt finished this weekend after waiting ages for the handles to arrive.

                Will install fridge slide at some point.

                All up cost was around the 300-350 range.

                Have the google sketchup file / model if anyone wants it.

                Looks great!
                2.8L Kakadu (Chrystal Pearl). Extras - Snorkel, tow-bar, tint & bonnet protection. Wish list - Bash-plate, diff breather extension

                Comment


                • #83
                  Originally posted by Craggles123 View Post
                  Finally got my attempt finished this weekend after waiting ages for the handles to arrive.
                  What materials did you construct them from? How much did they end up weighing?

                  Comment


                  • #84
                    In hindsight I went a bit overkill and used 15mm structural ply, 12mm probably would have been enough

                    In terms of weight no idea, probabaly in the 40kg-50kg range, I can lift the whole unit without the draws in it and I'm no strong man

                    Carpet was sourced from bunnings

                    Hardest bit to find was the propeller plate angle, i wanted a bit of bling so got a local steel mob to make some up for me, $30 bucks well spent

                    Comment


                    • #85
                      If anyone is chasing it I've uploaded my model of the main drawer unit, doesnt include wings as they were done trial and error on the day.

                      https://3dwarehouse.sketchup.com/mod...ploadsuccess=1

                      Comment


                      • #86

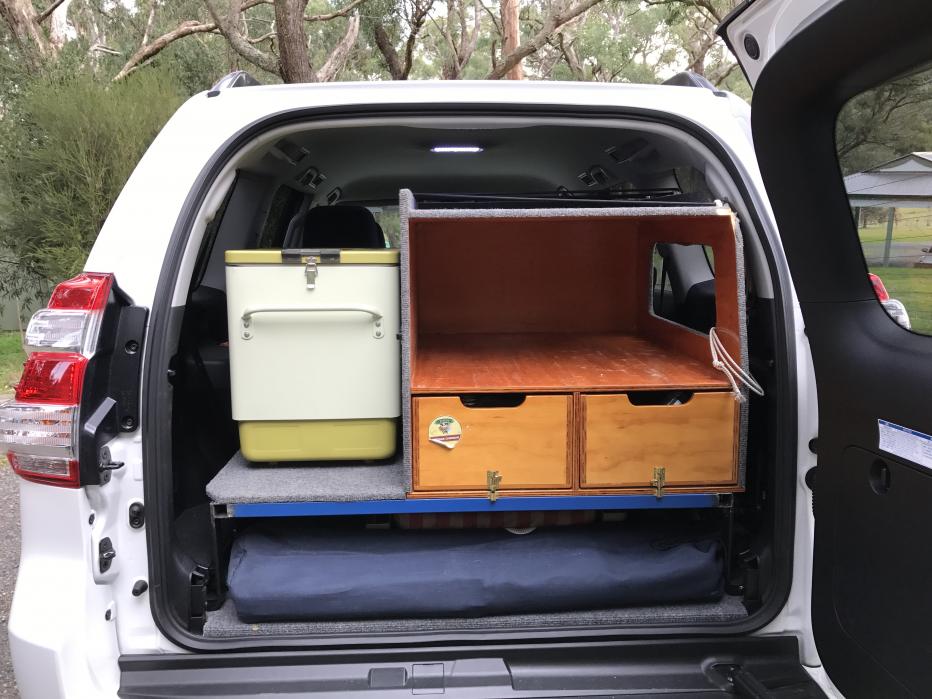

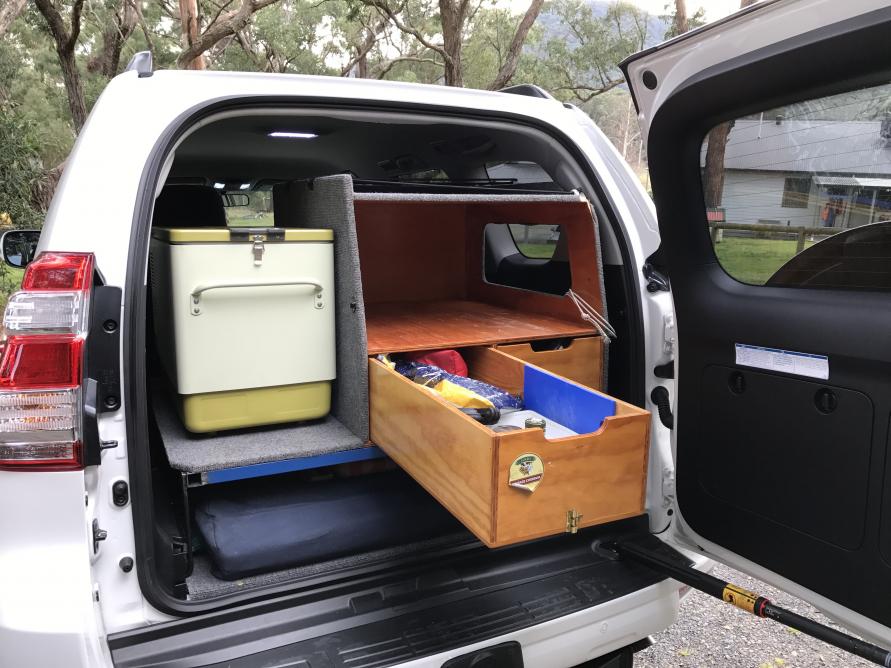

                        I've been watching all your builds for a while and there's some real handy people out there with some excellent design ideas. I also wanted drawers badly but when I saw the price I just couldn't see the value so I decided to use you guys as motivation and here's the result. I went for the VX look (cos I can't afford an actual VX). The handles were only meant to be temporary but I kinda liked the wood look so made it a theme.

                        Click image for larger version

Name:	DSC_0007_3.jpg
Views:	1
Size:	97.1 KB
ID:	654021

                        Click image for larger version

Name:	DSC_0010_4.jpg
Views:	1
Size:	94.8 KB
ID:	654022

                        Click image for larger version

Name:	DSC_0012.jpg
Views:	1
Size:	90.1 KB
ID:	654020
                        Rob L
                        Junior Member
                        Last edited by Rob L; 29-08-2016, 05:36 PM.
                        [B]2010 GXL D-4D:[/B] "TO INFINITY AND BEYOND"...... What?? Yeah, yeah. After I've done the mowing....
                        2" Outback Armour lift, dual battery, TJM bar, Winch, Fyrlyt spotties, Snorkel, Hancook RT03's or Pirelli Scorpions (depends on what I'm Doing), roof rack/awning/lights/water tank, multiple scratches and one small dent in bonnet (tie kayak down next time)

                        Comment


                        • #87
                          Nice! Now retrofit wood trim to the rest of the car...
                          My 150 build - http://www.pradopoint.com/showthread.php?27423-A-Random-approach-to-a-Bluestorm-150-GXL-D4D-automatic

                          Comment


                          • #88
                            Installed the storage system from the old 90 series into the 150 this weekend. Required extensive mods to its steel frame, considerably more than I expected, anyway majority done with only a few more bits before painting the new frame. Interestingly there is less width to play with in the 150, quite a bit more depth if the 2nd row seats are slid forward.

                            Click image for larger version

Name:	IMG_0402.jpg
Views:	1
Size:	93.9 KB
ID:	656193
                            Click image for larger version

Name:	IMG_0404.jpg
Views:	1
Size:	94.7 KB
ID:	656194

                            Comment


                            • #89
                              i designed and built my own, below are a couple of photos, also you can view an in depth rig setup on my YouTube and Patreon channels,
                              https://www.patreon.com/user?u=16795458
                              https://www.youtube.com/channel/UCYl..._as=subscriber

                              Comment


                              • #90
                                That's a nice setup.
                                Fitted so far:-Toyota Alloy bar,Redarc BDCD1220 battery managment system and dual power outlet,tracklander full length rack and ladder,Milford cargo barrier,Kaon transmission guard, UVP& Lower Shock mount Guards,Dobinson/Bilstein suspension,Toyota Bonnet and headlight guards,39ltr engel and an opposite lock stubby holder (from the old '80' series),Polyair Airbags,Pradopoint sticker,Gonefishin' custom Sidesteps.

                                Comment
